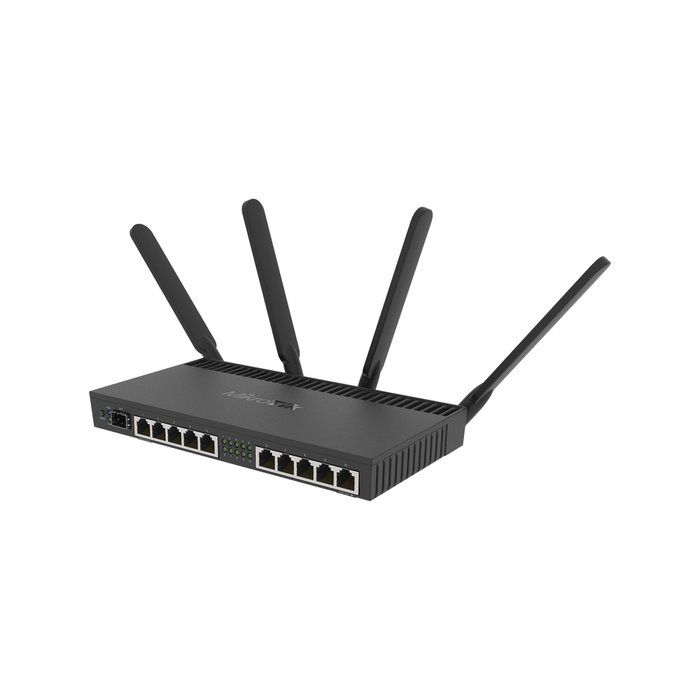

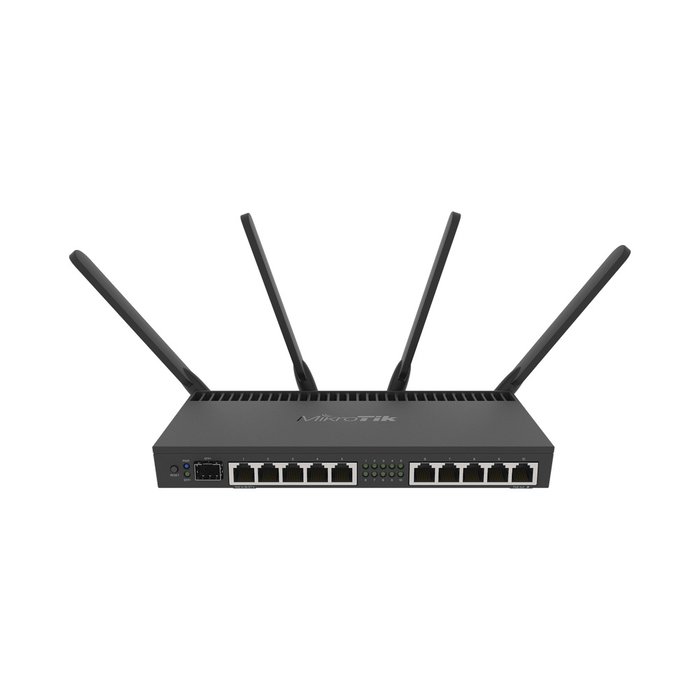

Router con Wi-Fi 4x4 MU-MIMO, hasta 2 watts de potencia, antenas de 3 dBi, 10 puertos Gigabit, 1 Puerto SFP+
Router con Wi-Fi 4x4 MU-MIMO, hasta 2 watts de potencia, antenas de 3 dBi, 10 puertos Gigabit, 1 Puerto SFP+
Router con Wi-Fi 4x4 MU-MIMO, hasta 2 watts de potencia, antenas de 3 dBi, 10 puertos Gigabit, 1 Puerto SFP+

Router con Wi-Fi 4x4 MU-MIMO, hasta 2 watts de potencia, antenas de 3 dBi, 10 puertos Gigabit, 1 Puerto SFP+

  • Modelo: RB4011IGS+5HACQ2HND-IN
  • Fabricado por: MIKROTIK

$502.38USD

Detalle


El RB4011 posee un poderoso CPU quad core Cortex A15. El CPU soporta la aceleracion por hardware para IPsec. En adicional tiene 10 puertos de 1 Gbps en ethernet, y el equipo cuenta con Wave-2 MU-MIMO 4x4.


Características principales de RouterOSEspecificaciones

Details
Product code RB4011iGS+5HacQ2HnD-IN
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency 1.4 GHz
Dimensions 228 x 120 x 30 mm
License level 5
Operating System RouterOS
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
Tested ambient temperature -40°C .. +45°


Alimentación

Details
PoE in 802.3af/at
PoE out Passive PoE up to 57V
PoE in input Voltage 18-57 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max out per port output (input > 30 V) 420 mA
Max out per port output (input < 30 V) 600 mA
Max total out (A) 600 mA
Max power consumption (W) 55
Max Power consumption 26W


Wireless

Details
Wireless 5 GHz number of chains 4
Wireless 5 GHz standards 802.11ac
Antenna gain dBi for 5 GHz 3
Wireless 5 GHz chip model QCA-9984
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model R11e-2HnD


Ethernet

Details
10/100/1000 Ethernet ports 10


Fiber

Details
SFP+ ports 1


Peripherals

Details
MiniPCI-e slots 1
Serial port RJ45


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes


Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 33 -96
54MBit/s 29 -81
MCS0 33 -96
MCS7 28 -77
MCS9 26 -72

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 28 -100
11MBit/s 28 -94
6MBit/s 29 -96
54MBit/s 25 -80
MCS0 26 -96
MCS7 24 -79


Included parts






  • Procesador Quad Core 1.4 GHz, RAM 1 GB
  • 10 puertos Gigabit RJ-45, 1 SFP+ 10G
  • Wi-Fi Mu-MiMo 4x4 5 GHz 802.3ac
  • Aceleración por Hardware para IPsec
  • Para escritorio o montaje en pared
