Detalle
CRS106-1C-5S

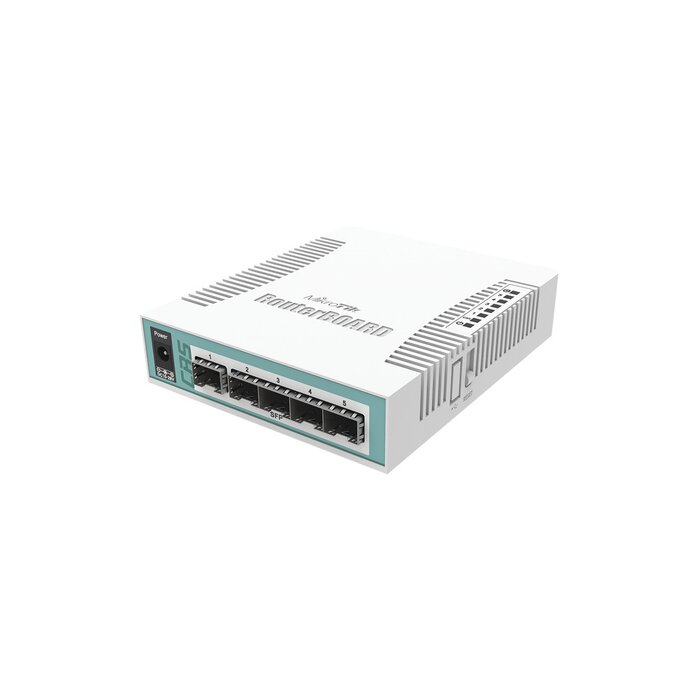

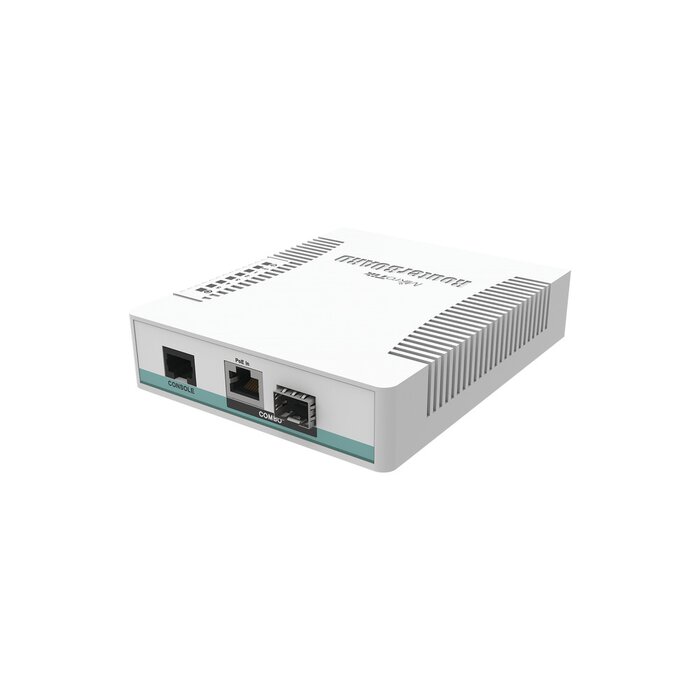

La nube Switch Router 106-1C-5S es un switch inteligente tamaño de escritorio, equipada con un puerto combo Gigabit Ethernet / SFP y cinco jaulas 1.25Gbps SFP. El paquete incluye una fuente de alimentación. Impulsado por una CPU de 400 MHz y 128 MB de RAM, que se ejecuta con una licencia RouterOS L5 y soporta 11- 30V de potencia.
| Product code | CRS106-1C-5S |
| CPU | QCA8511 |
| CPU core count | 1 |
| CPU nominal frequency | 400 MHz |
| Dimensions | 114 x 137 x 29mm |
| Ethernet Combo ports | 1 |
| License level | 5 |
| Max Power consumption | 11W |
| Operating System | RouterOS |
| PoE in | Passive PoE |
| Power Jack | 1 |
| SFP ports | 5 |
| Serial port | RJ45 |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Supported input voltage | 11 V - 30 V |
Included parts
Switching results
| CRS106-1C-5S | |
| Mode | Configuration | 64 byte | 512 byte | 1518 byte |
| kpps | Mbps | kpps | Mbps | kpps | Mbps |
| Switching | Non blocking Layer 2 throughput | 8,928.6 | 4,571.4 | 1,409.8 | 5,774.4 | 487.6 | 5,922.0 |
| Switching | Non blocking Layer 2 capacity | 8,928.6 | 9,142.9 | 1,409.8 | 11,548.9 | 487.6 | 11,844.0 |
| Switching | Non blocking Layer 1 throughput | 8,928.6 | 6,000.0 | 1,409.8 | 6,000.0 | 487.6 | 6,000.0 |
| Switching | Non blocking Layer 1 capacity | 8,928.6 | 12,000.0 | 1,409.8 | 12,000.0 | 487.6 | 12,000.0 |
